Owner: Zachary Zane Zamora

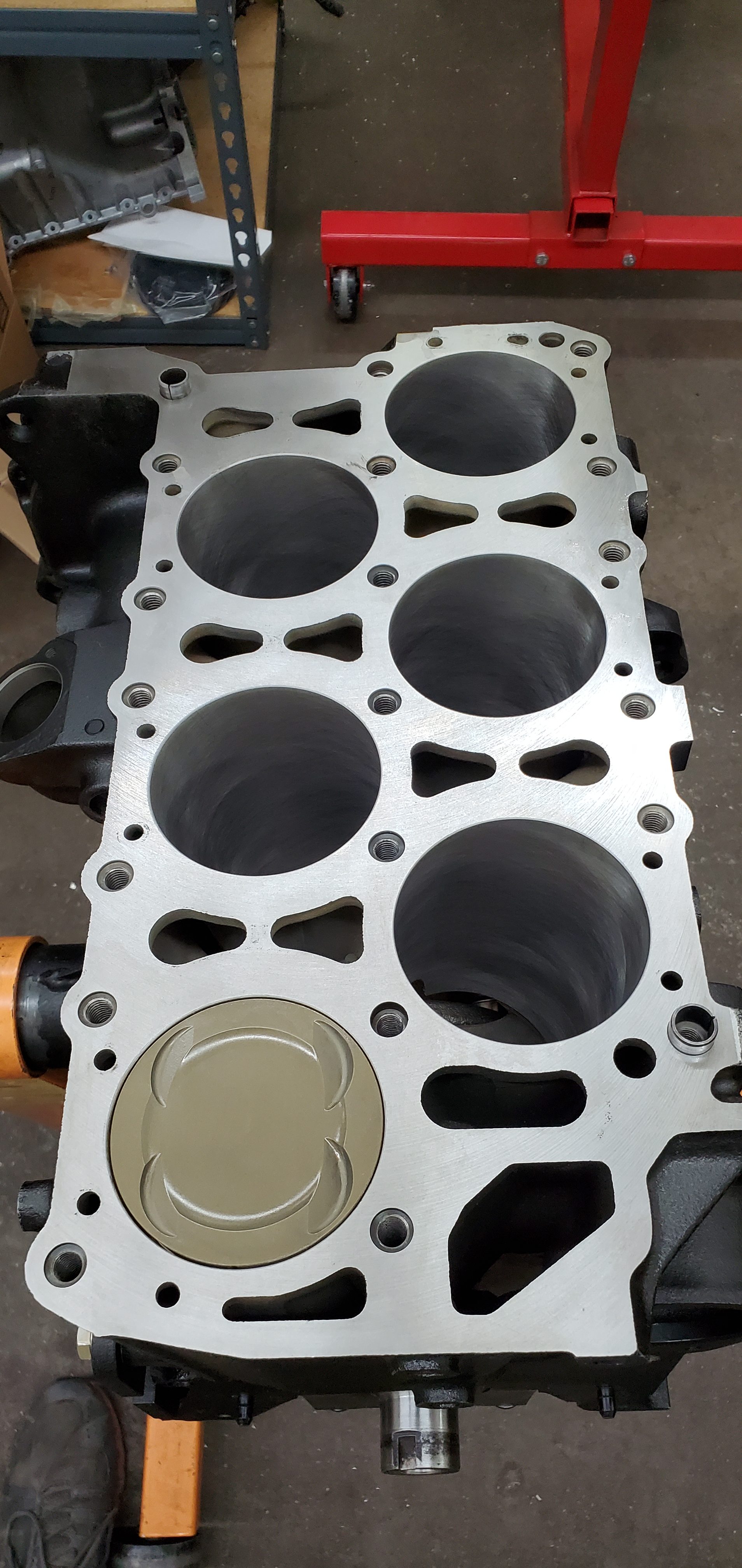

Block specs:

• 2004 Touareg VR6 24v engine
• Pauter rods 3/8 bolts
• Je pistons 11.5:1 CR (coated)
• 10.2:1 dropper HG to lower comp
• M10 ARPs headstuds
• ARP main studs
• Oil squirter delete (pluged)
• King rod bearings
• Oem coated main bearings
• Schimmel oil filter housing

Head specs:

• STOCK CAMS STOCK PORT
• Supertech exhaust valves
• Supertech intake valves
• Supertech dual springs and retainers
• valve job

Fuel:

• CTS Fuel rail ID1700s
• Fuel damper
• Twin walbro 525s
• Flex fuel sensor
• TS FPR2000
• Dual 8an ptfe feeds
• 6an ptfe return
• Srm Fuel hat
• Dual 10 micron robbmc filters

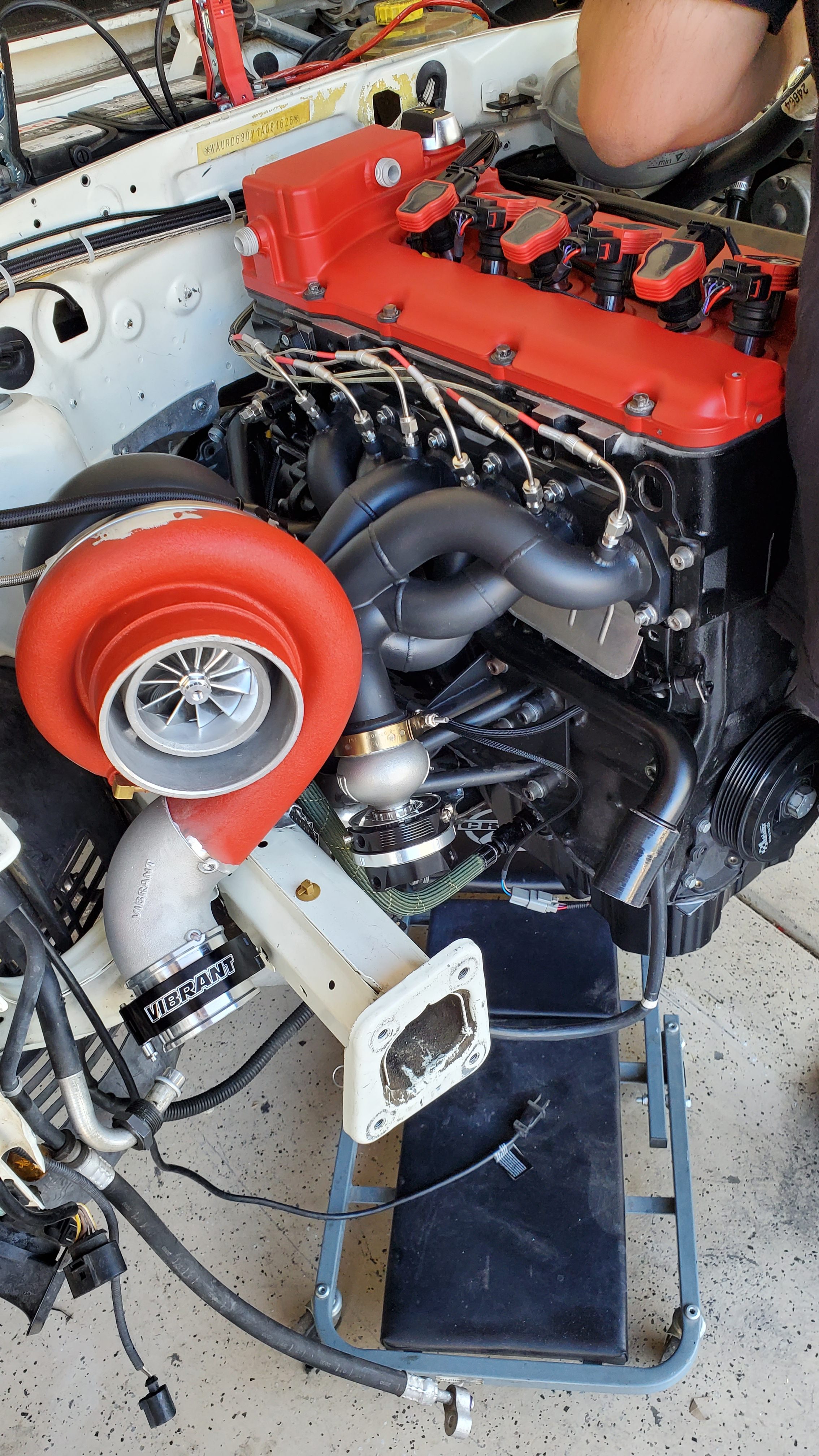

Turbo:

• GTX4202R 1.28ar
• Twin turbosmart gen V 45mm gates
• Custom JDL manifold
• Individual Egts

Intake:

• Custom JDL intake
• Bosch 82mm DBW
• Garrett core
• Custom piping and fab at State 48 Performance & Fabrication.
• TS race BOV

Electronics:

• Custom wiring done by Dustin Gurley
• Maxxecu PRO
• R8 coils
• Ngk 6546 gapped at .024
• Oil pressure/oil temp sensors
• Fuel pressure sensor
• Fast response IAT
• Coolant pressure sensor
• Exhaust back pressure sensor

Drivetrain:

• 01e trans JHm rebuild with carbon syncros
• JHm new gear set
• Jhm 4:1 center diff mod
• FX850 clutch with OEM slave cylinder
• Billet vr6 steel flywheel
• Dr beast engine mounts
• Shortened oem driveshaft
• Shortened oem shifter linkage

Misc:

• 12″ spal extreme fan
• 12″ spal medium profile fan 2
• madza fan controllers (soft start, PWM)
• Working Powersteering with custom reservoir
• AC compressor, condenser, lines )

Exhaust:

• Custom 4″ exhaust at State 48 Performance & Fabrication.

Power: 1068whp  Torque: 894trq
